The Chevron-operated Jansz field, discovered in 2000 with the Jansz-1 well, is situated in the North West Shelf of Australia at a distance of 250km off the coast. The water depths range from 1.1-1.4km with lowest known gas in the field at 2970 mSS TVD at the Io-2 well. The closure of the Upper Jurassic age gas-filled trap has an aerial extent of more than 2000kmand a thickness of up to 65m.

A narrow-azimuth towed-streamer (NATS) seismic survey was shot in 2004 and the XWITM proof-of-concept subset consists of 9 sail lines taken from the core area of the field. The velocity cube with dimensions 26km (IL direction) by 2.8km (XL direction) by 4km (depth) contains the main updip wells Jansz-3 and Io-1.

The study input data consists of 5186 shots minimally processed beyond bandpass filtering and is utilised within the AWITM and FWI cost functions to iteratively optimise a velocity model to go from a smooth to a highly-resolved full-quantitative characterisation of the subsurface.



XWITM final velocity model

This is the final FWI after AWITM velocity model obtained from 36 passes through the shots at frequencies up to 22Hz. Velocity curves extracted from the model at the well locations highlight the significant change that occurs between start (dashed line) and final (continuous line) results.

The wells intersecting the displayed section are Jansz-3 (left) and Io-1 (right) with the logs given in this integrated field study AAPG paper. In the two wells, the depths of the Base Cretaceous Unconformity (BCU) regional marker are found at 2776 mTVDSS and 2811 mSS TVD and align with a high-velocity contrast at the corresponding locations in the XWITM result. The paper states that the BCU corresponds to a cemented package explaining the velocity kick. Impedance logs published in this IPTC paper also confirm the presence of the hard interface at these depths.

Directly underlying the high-velocity BCU, our inversion detects a thin low-velocity layer which begins to delineate the high-porosity interval of the field. By moving to a finer model grid and predicting data to greater frequencies, the target sandstone interval which has emerged into the model can continue to further resolve and intensify.

XWI velocity model overlaid with markers from the Jansz-3 and Io-1 well logs at the Base Cretaceous Unconformity depths. The velocity curves are for starting model and final model.

XWI velocity model overlaid with markers from the Jansz-3 and Io-1 well logs at the Base Cretaceous Unconformity depths. The velocity curves are for starting model and final model.

Model validation: PSDM before and after XWITM

Near-offset pre-stack depth-migrated stacks are generated to QC the velocity update. The starting model stack has a clear pull-up at the Cretaceous wedge due to the missing velocity heterogeneity in the overburden section of this model.

The XWITM velocity update results in a downward shift of 120m and 135m at the wells (blue to green dashed line) and the continuous negative amplitude event tracked across the section lands immediately below the BCU markers, in close proximity to top porosity in the two wells.

Starting model PSDM

Starting model PSDM

Final model PSDM

Final model PSDM

3D narrow-azimuth streamer survey

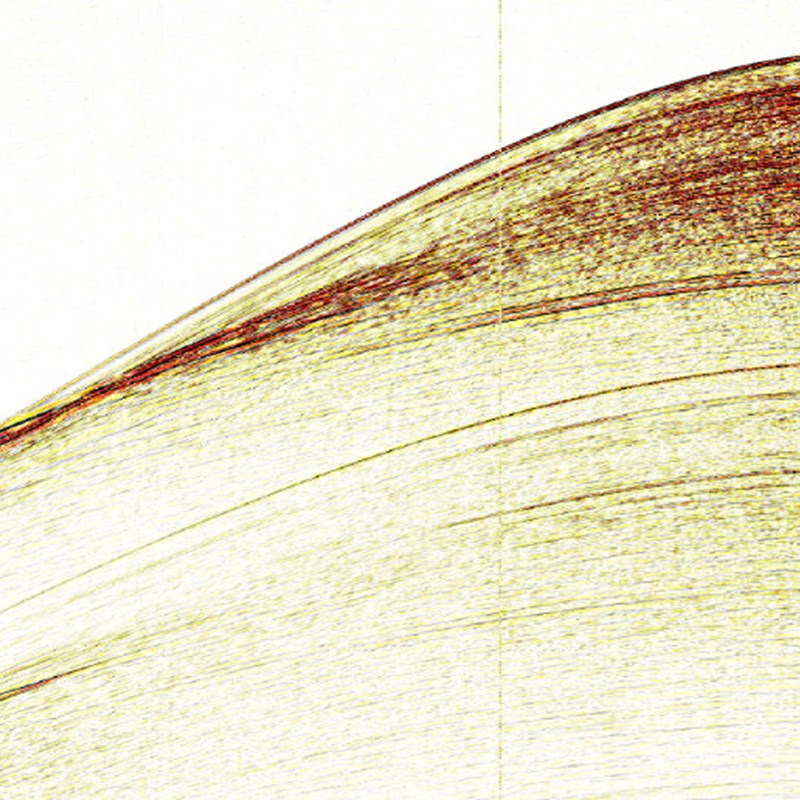

The survey is a narrow-azimuth marine streamer acquisition with 8 receiver cables of length 5.5 km. With the limited offsets, the XWITM updates need to penetrate below the reach of the diving waves for broadband velocity recovery at the economic target.

The raw shot gathers that are input into the process have all free-surface effects retained. No pre-processing is applied to the traces beyond bandpass filtering for progressively widening the frequency range through blocks of iterations.

Model validation: predicted and observed data alignment

The panels show predicted data on the left and the corresponding observed data being matched on the right for a randomly selected shot gather. The data is inverted at widening bandwidths with both diving wave and pre-critical reflection energy converging through cost function reduction.



Start

Start

4Hz AWI

4Hz AWI

5Hz AWI

5Hz AWI

7Hz AWI

7Hz AWI

11Hz AWI

11Hz AWI

22Hz FWI

22Hz FWI

XWITM model evolution

The successful XWITM model evolution employs the AWITM objective function for the long to intermediate length scale updates before switching to the FWI objective function for final refinements to the detail.

FWI alone applied from the same starting model and same lowest frequency range leads to waveform inversion misconvergence (bottom right panel).



Start

Start

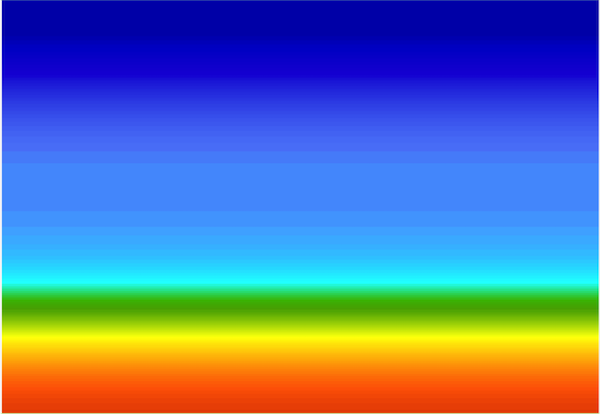

4Hz AWI (1 epoch)

4Hz AWI (1 epoch)

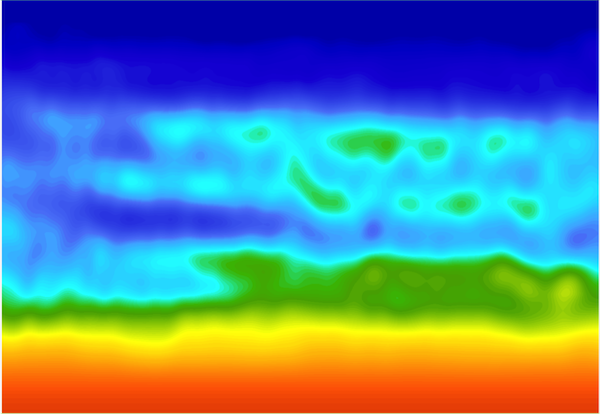

4Hz AWI (2 epochs)

4Hz AWI (2 epochs)

4Hz AWI (3 epochs)

4Hz AWI (3 epochs)

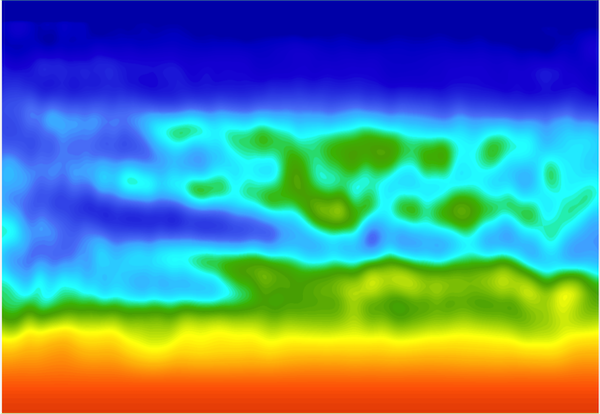

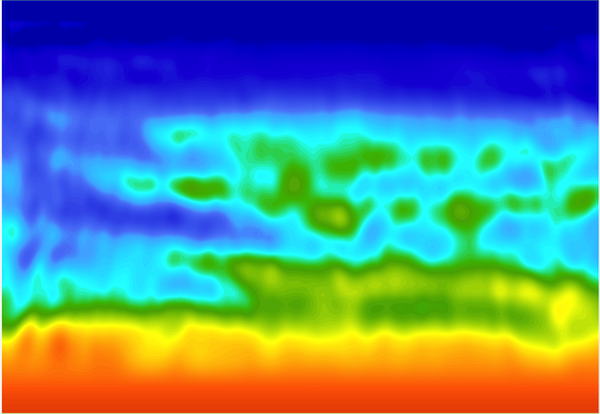

6Hz AWI (12 epochs)

6Hz AWI (12 epochs)

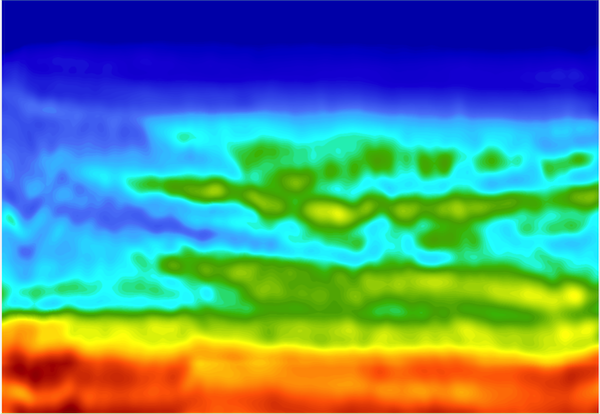

6Hz FWI after AWI (24 epochs)

6Hz FWI after AWI (24 epochs)

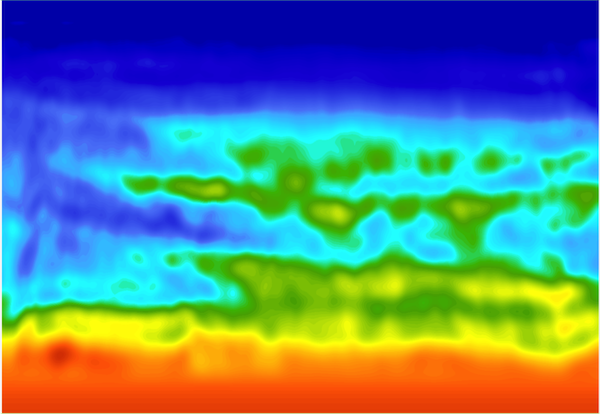

FWI after AWI (final)

FWI after AWI (final)

FWI alone

FWI alone
